2WD Eddy Brake Chassis with SP5 Controller package


2WD Eddy Brake Chassis with SP5 Controller package

18,500.00

Available soon!

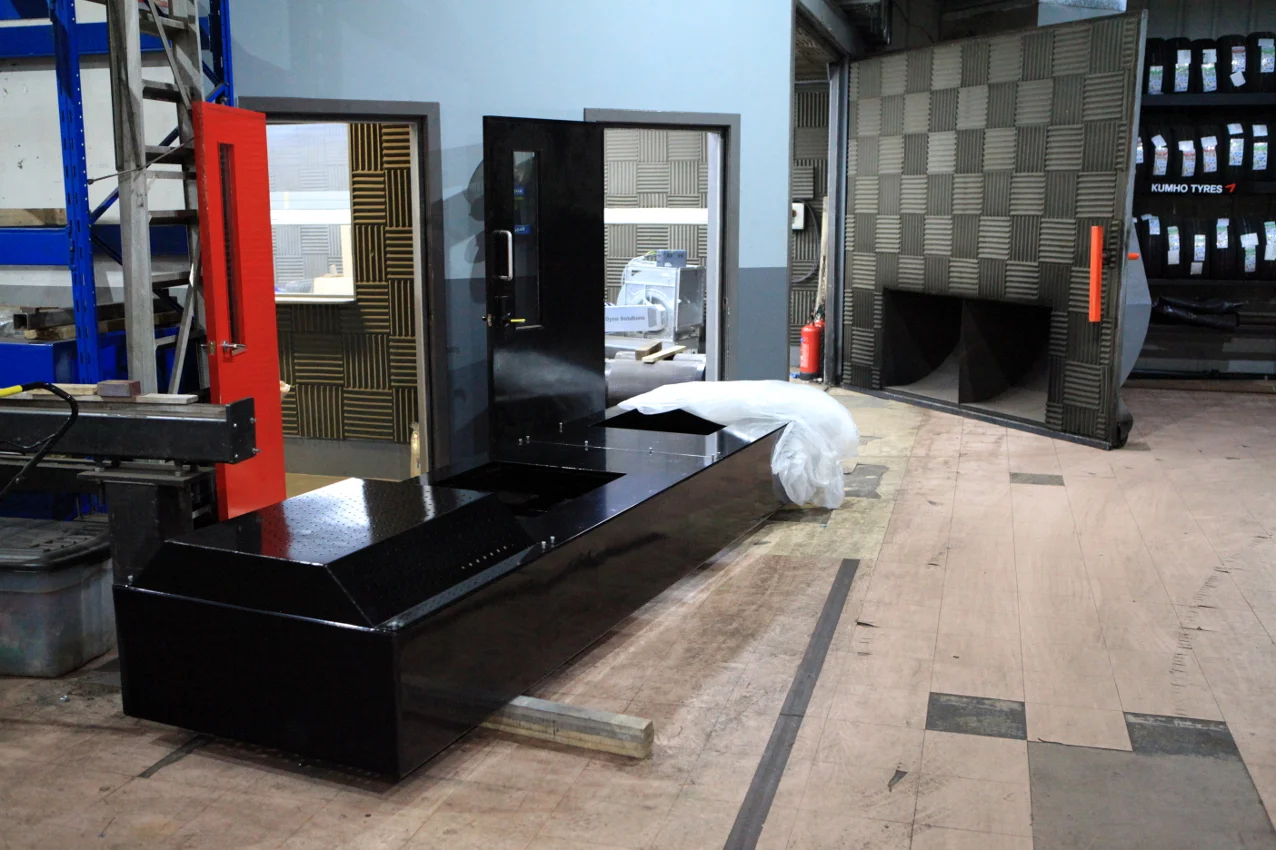

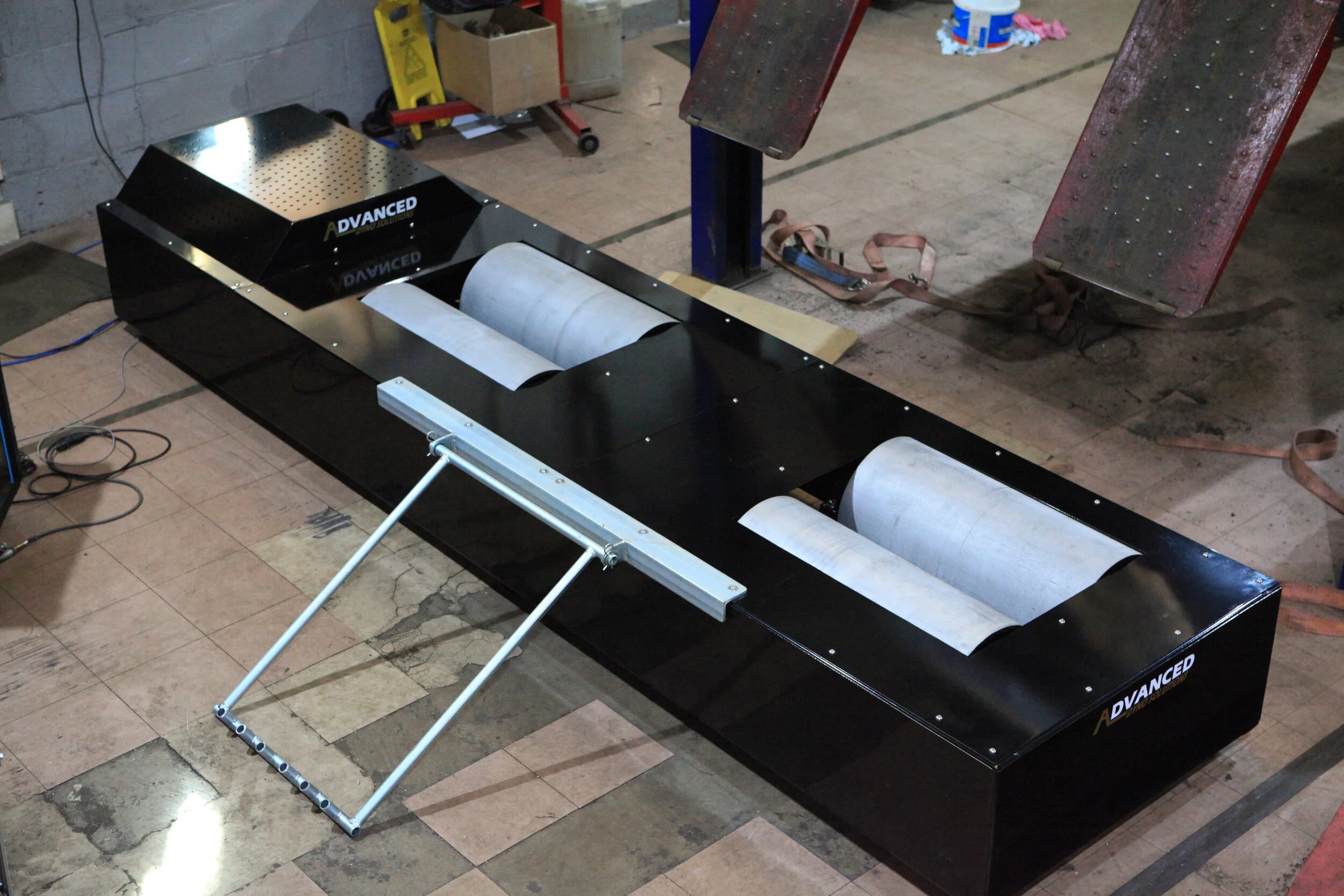

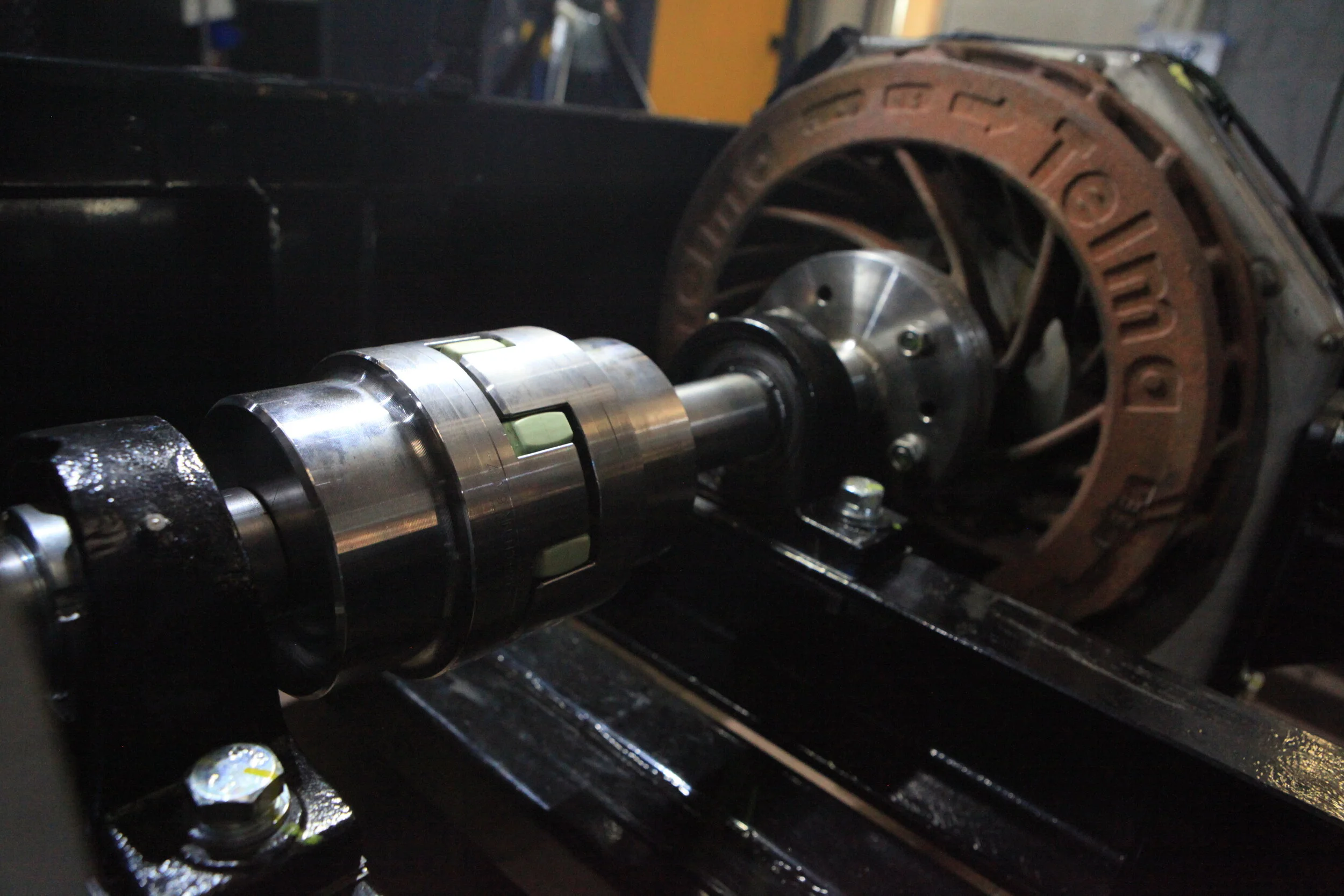

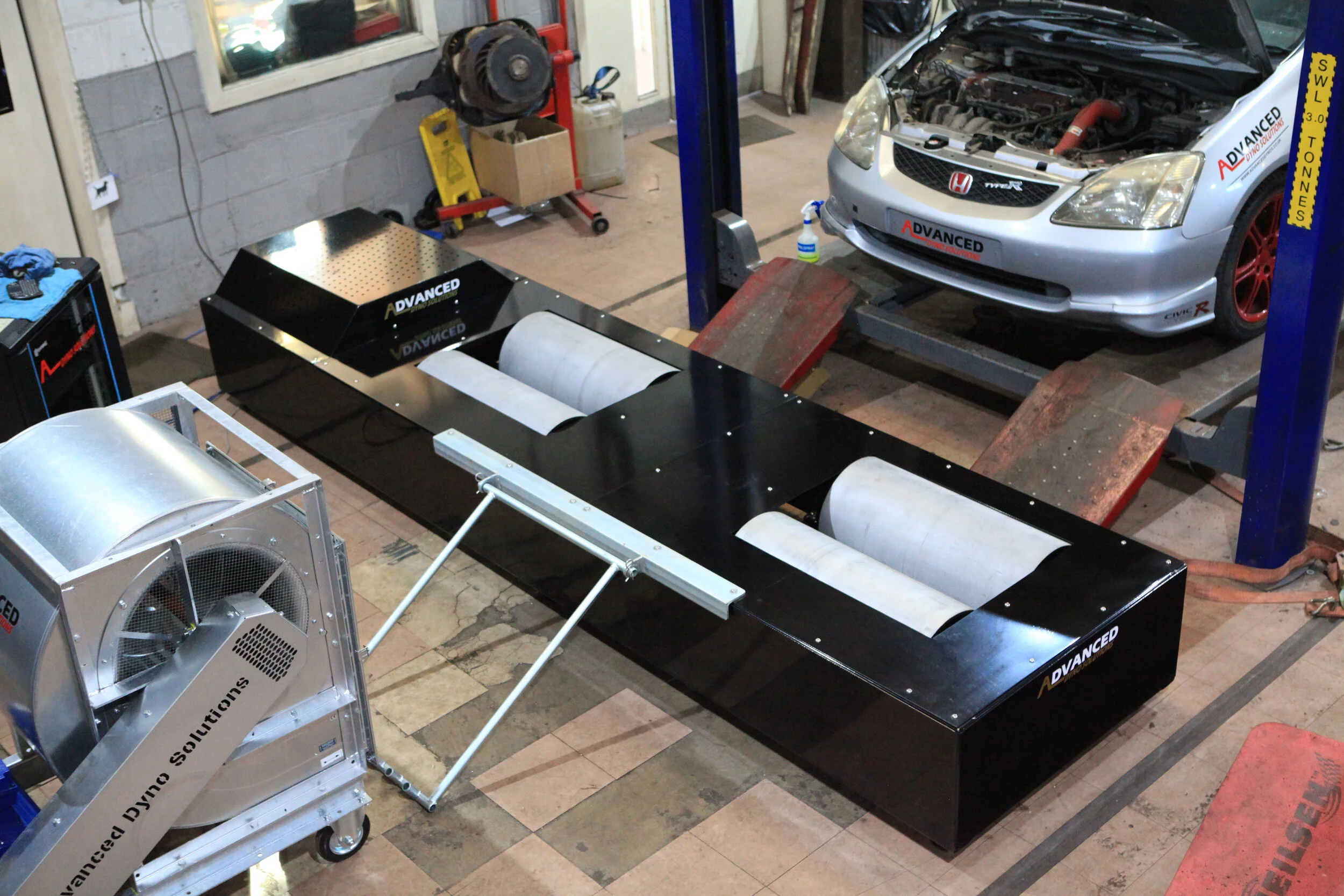

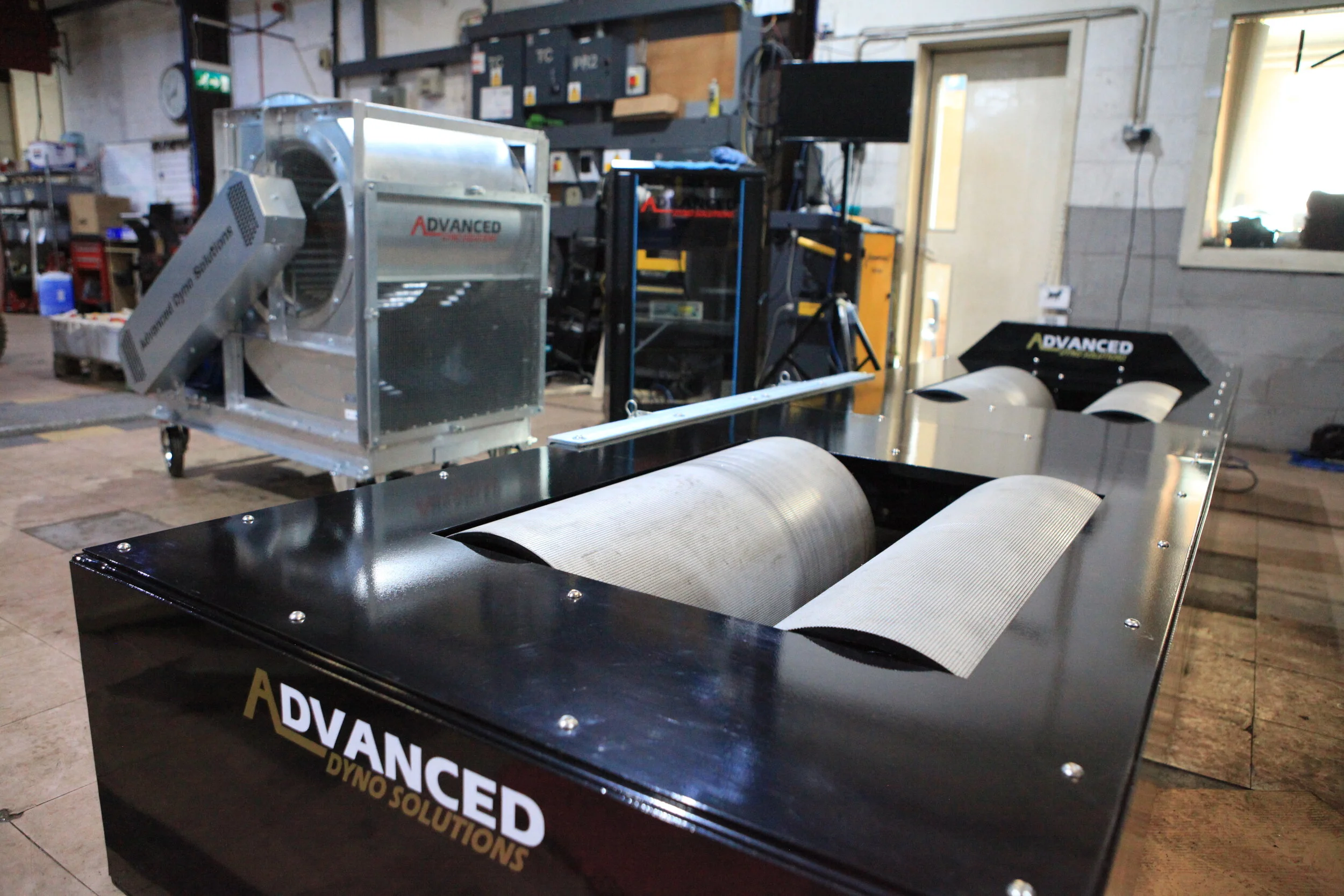

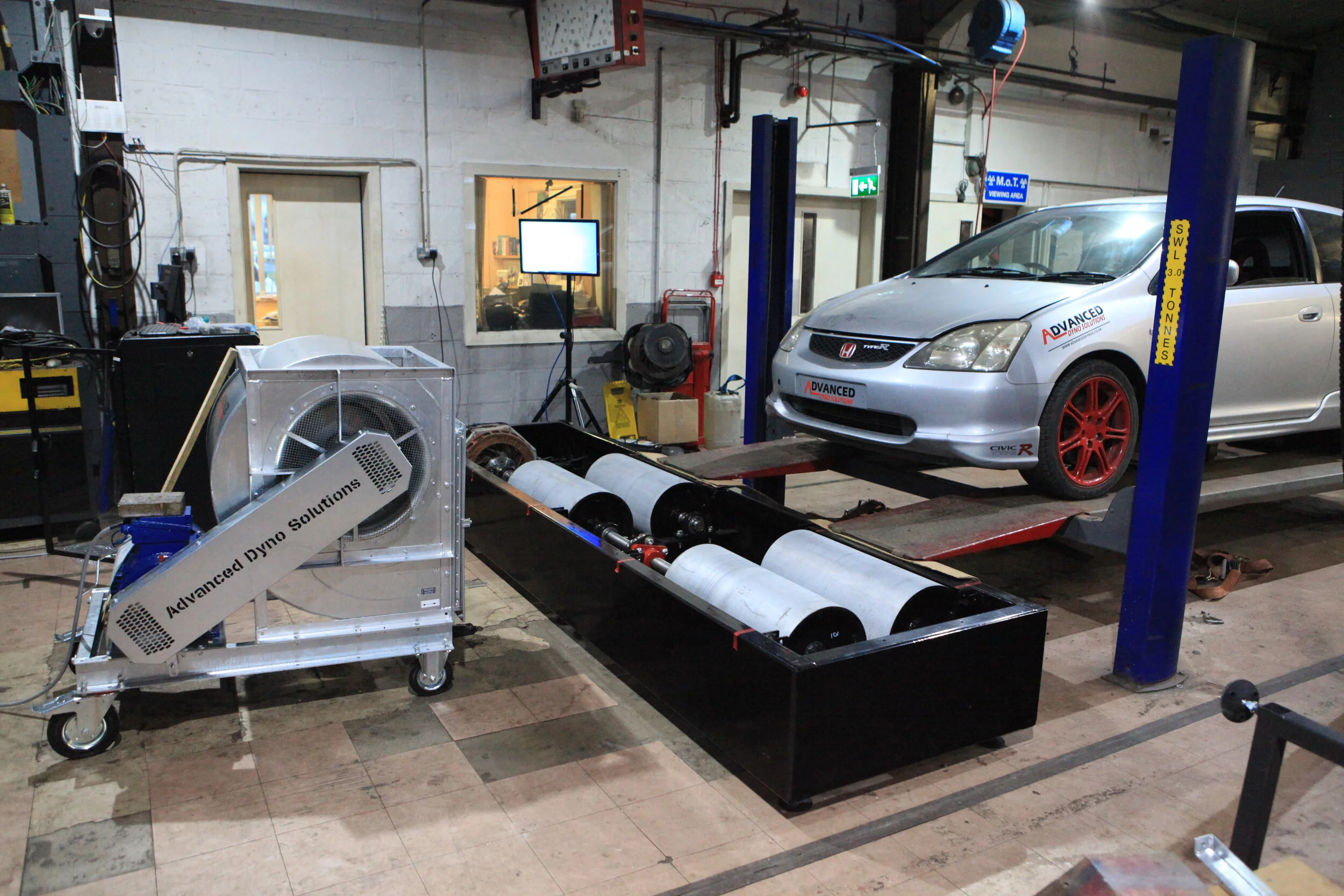

Extensively re-engineered 2WD Eddy Brake Chassis with SP5 Controller package using 350mm large size 4 roller setup and 2000nm brake

If others to believe it’s capable of 1000hp, we would rate it at 800hp with 350mm rollers and 2000nm Eddy Brake *Traction/Gearing dependant

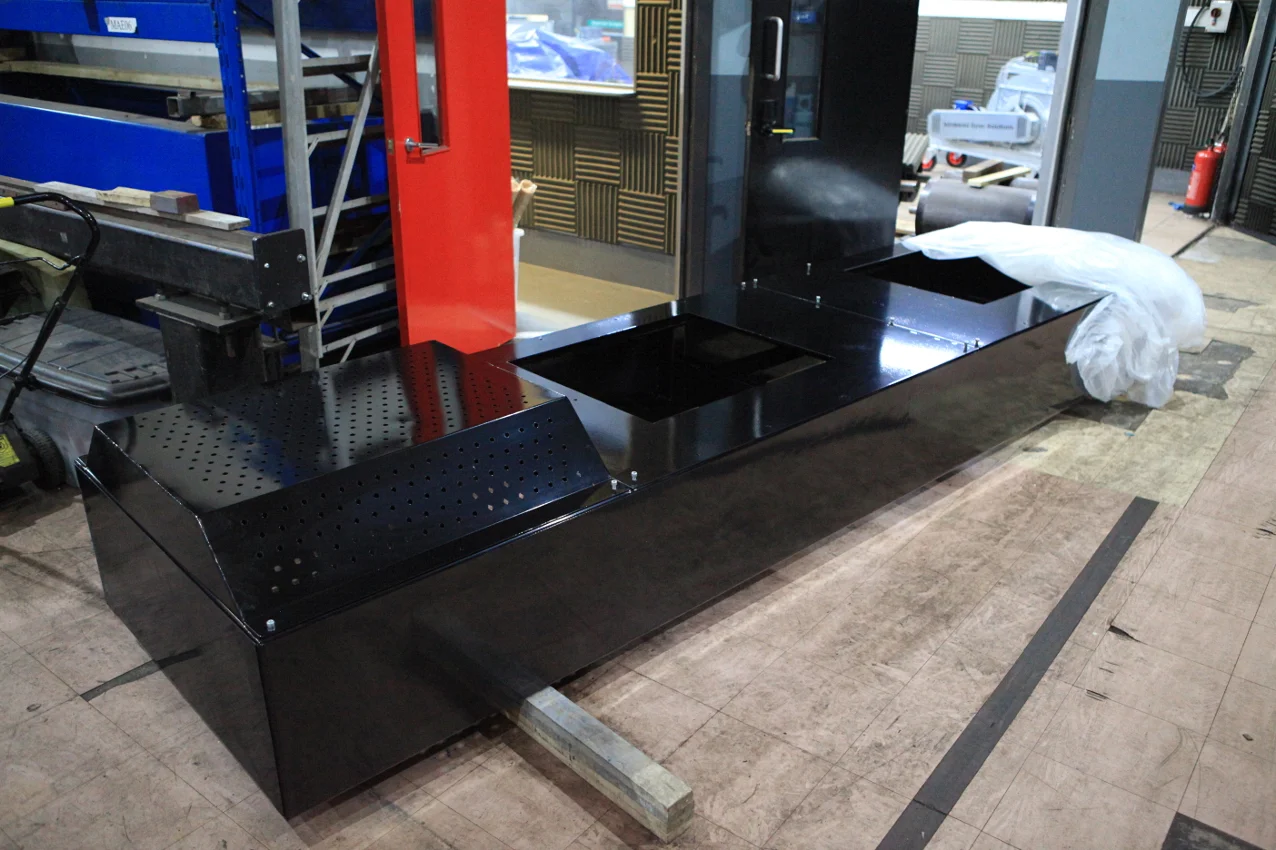

Bead blasted and powder coated chassis. Re-engineered to higher tolerance, strength and rigidity.

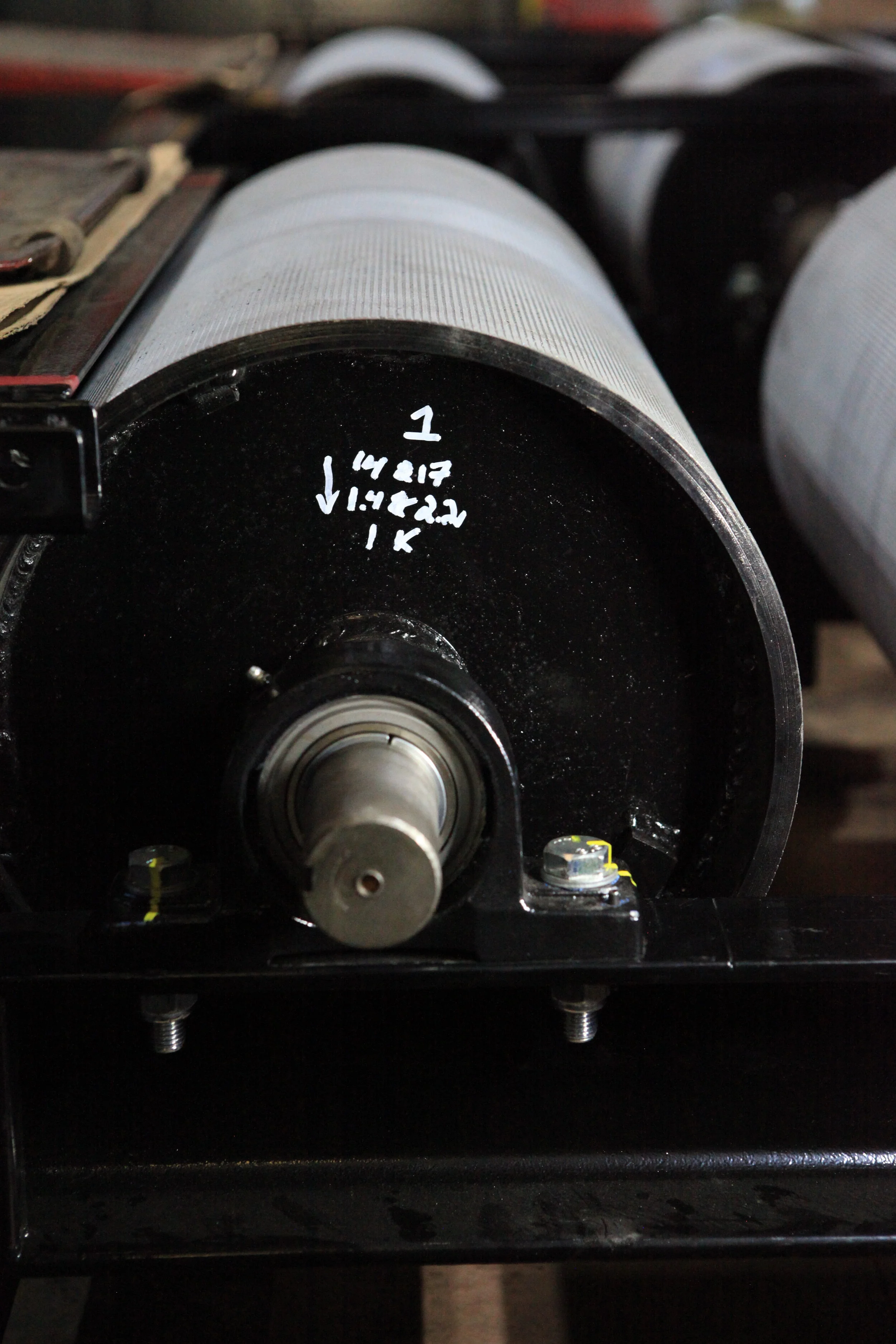

Load rollers parallel machined for superior grip

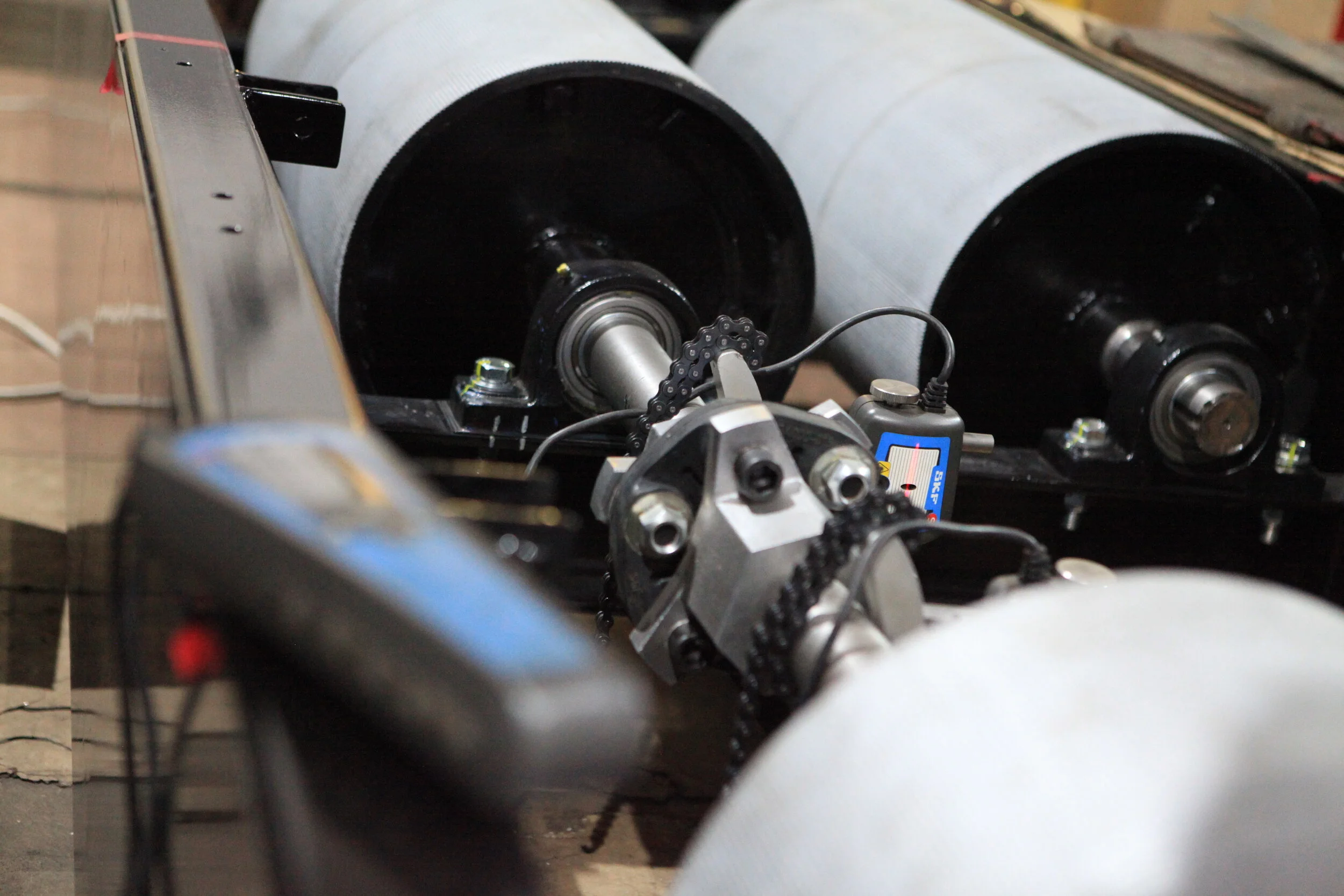

 All rollers dynamically balanced to higher specification by ADS

 All new high-speed bearings.

 New fasteners and fittings.

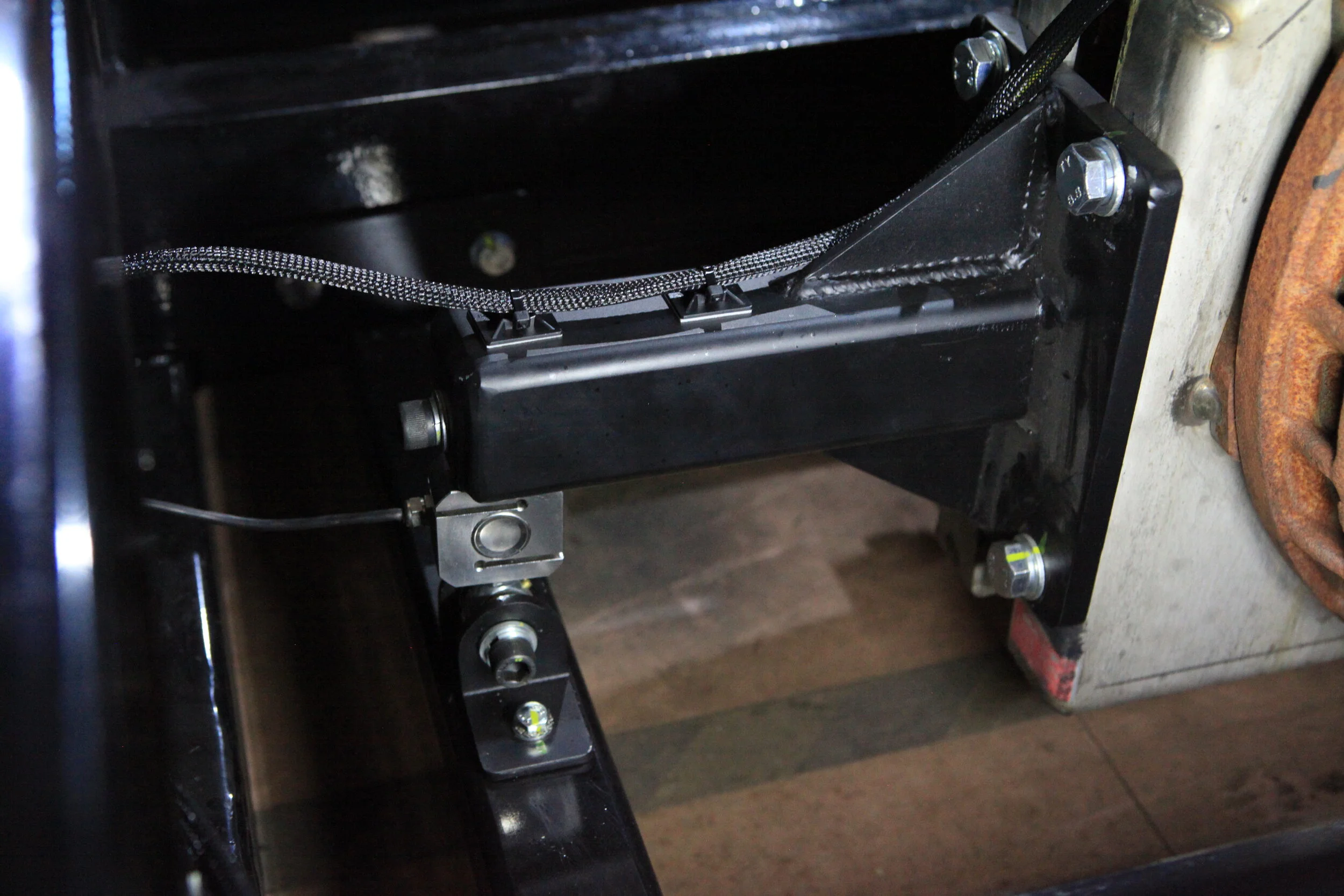

 Completely rewired.

 All new controller package consisting:



Special version SP5 controller configured to our spec.



New Win7 PC, 24” Monitor, Inkjet printer, wireless tracker-ball keyboard.



19” rack cabinet with isolator and brake output.



5bar vac/boost pressure sensor.



10bar oil/fuel compatible pressure sensor.



2 x EGT K-type thermocouples and glands – 1100C.



2 x Small Bead K-type thermocouples – 300C.



4 x Spare K-type inputs



Wideband AFR controller and tailpipe adapter.



2 x 0-30V voltage probes (fuel pump measurement etc)

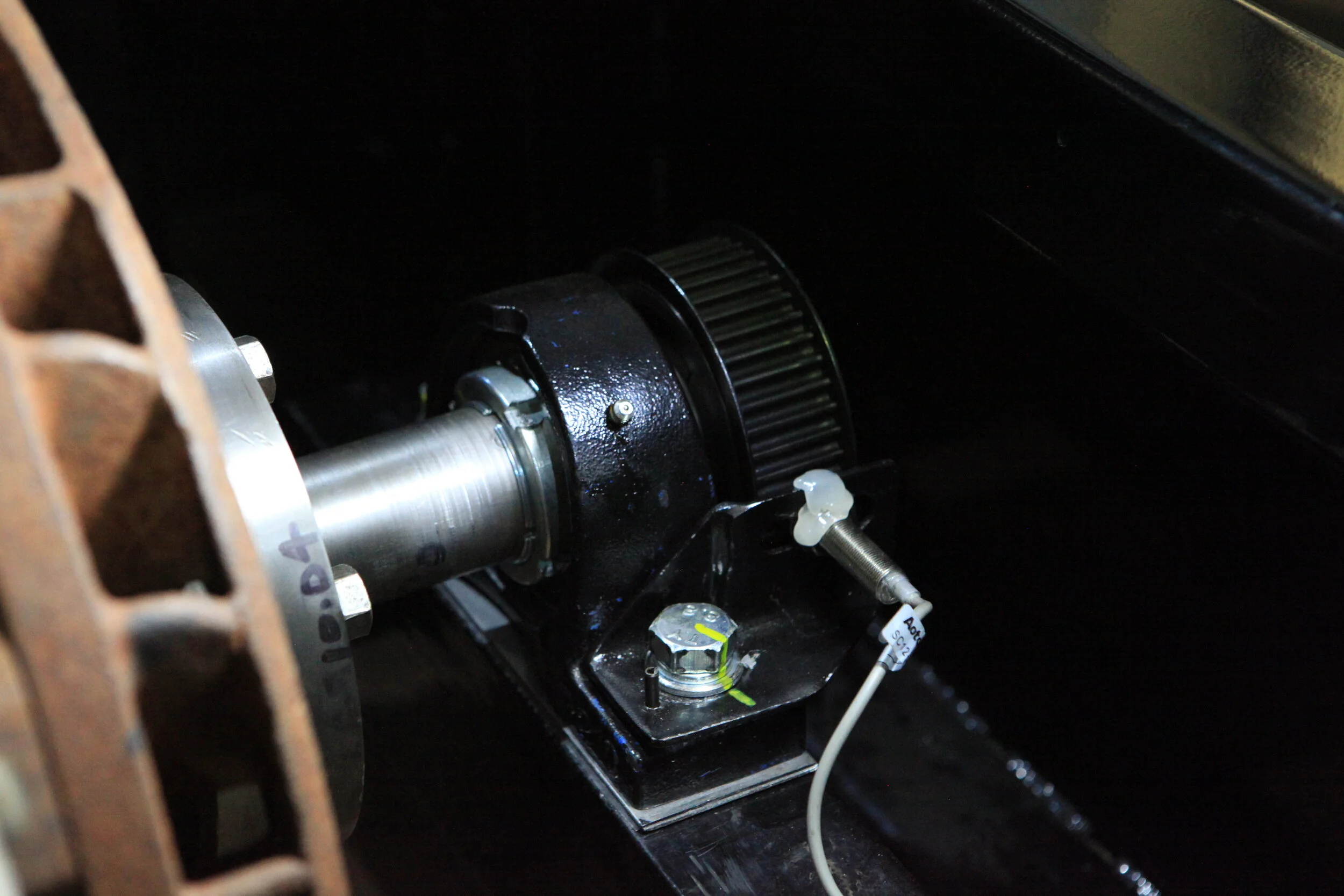

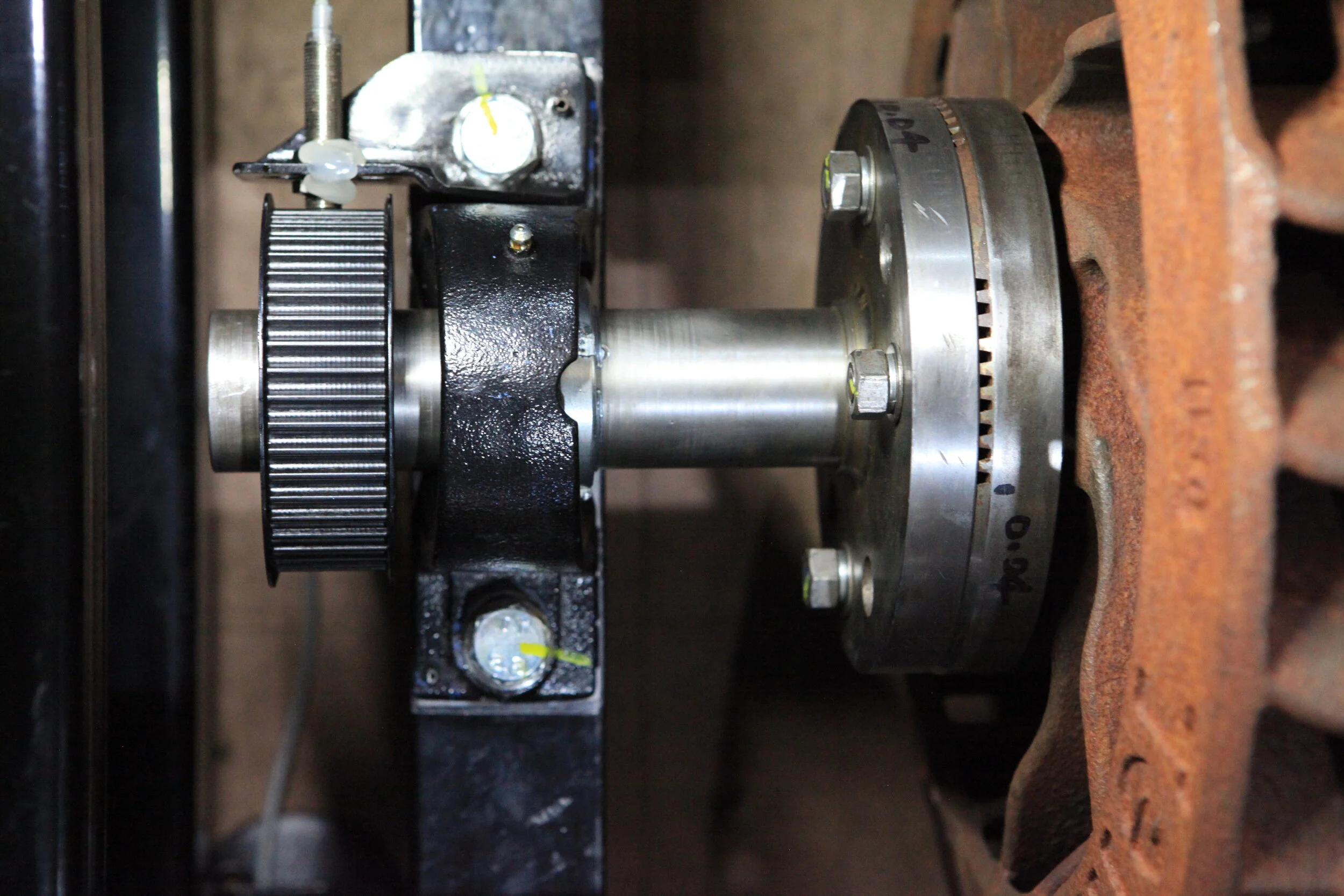

2 x RPM pick-ups.



Automatic weather station (Bar, Pressure, Humidity) for continual atmospheric compensations.



2 x Heavy Duty Tie Straps



4 x Heavy Duty anchors and Excalibur bolts



OBDII adapter



 Priced at £18,500 + VAT ex. Works



For more information please contact:



Advanced Dyno Solutions

T: 01383 827 900

e: info@advanceddynos.co.uk

w: www.advanceddynos.co.uk
